European Automatic Pallet Production Line

European Automatic wood pallet production line

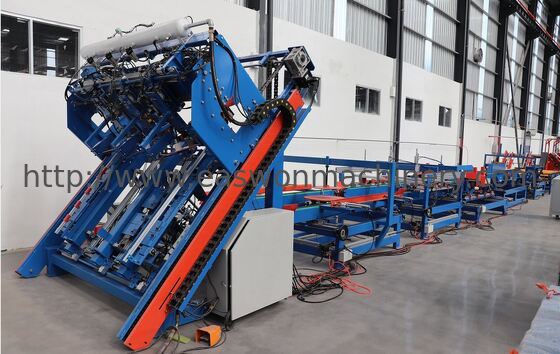

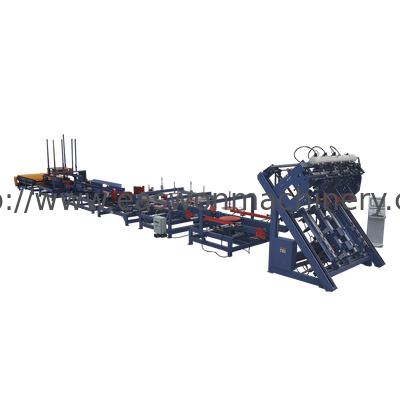

The European Automatic Pallet Production Line (AEPN-1300) is a heavy-duty, high-efficiency manufacturing solution explicitly engineered for the automated production of standard European wooden pallets (Euro pallets). Integrating automatic feeding, cutting, high-precision nailing, assembling, and stacking, this comprehensive production line is designed to significantly minimize labor costs while maximizing output for large-scale pallet factories, wood processing plants, and logistics packaging enterprises.

Key Technical Specifications

• Operating System: Imported PLC Touch Screen control for precise and user-friendly operation.
• Working Mode: Fully automatic feeding, multi-axis linkage nailing, and automatic stacking.
• Nailing Speed: High-efficiency nail guns operating at up to 7 times/second.
• Production Efficiency: 1–2 finished pallets per minute.
• Air Pressure Required: 0.8 MPa.
• Applicable Nail Sizes: Supports a versatile range of nails (65mm, 70mm, 75mm, 80mm, 85mm, 90mm).

Step-by-Step Production Process

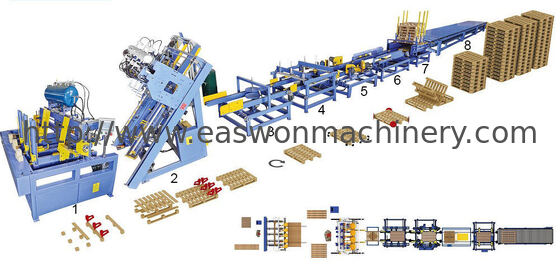

The production line seamlessly connects multiple specialized machines into a synchronized workflow:

Wood pallet block nailing machine		The block connecting machine automatically assembles the pallet blocks and the bottom deckboard.

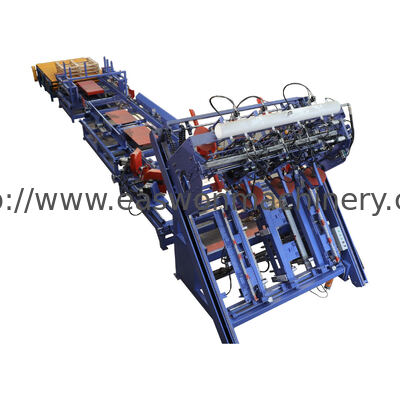

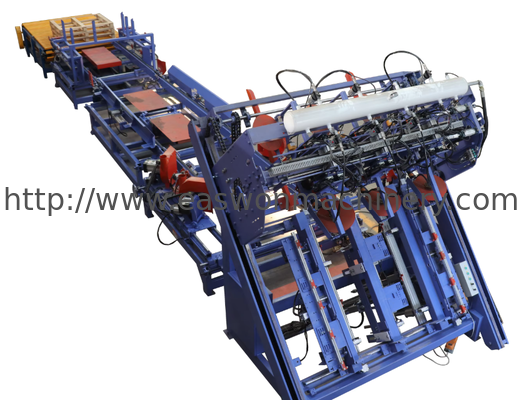

Automatic wood pallet nailing machine		The host nailing machine finishes the main assembly of the stringers/blocks and top plates using highly accurate, programmable positioning.
Wood pallet rotary machine		Once nailed on one side, the rotation and turnover mechanisms safely flip the half-finished pallet to allow completing the reverse side.
Wood pallet branding machine		Equipped with multiple soldering irons, the branding machine automatically imprints standard stamps or logos onto both sides of the pallet.
Wood pallet corner cutting machine		The four corners of the pallet are cleanly cut and chamfered for safety and compliance with international shipping standards.
Wood pallet turning machine		The wood pallet turner is an automatic pallet flipping solution designed for high-volume production lines. It handles pallets from 800mm to 1300mm in size, completing each flip cycle in just 4-8 seconds
Wood pallet palletizer		The finished pallets are automatically collected, flipped, and stacked (up to 4–5 stacks) before being moved down the conveyor line for easy forklift transport.
Wood pallet conveyor		After the finished pallets are stacked, the conveyor will deliver them for the forklift transport

Features & Advantages

• High Degree of Automation: Reduces manual labor significantly by completing feeding, nailing, flipping, branding, and stacking in a continuous, automated loop.
• Flexible Programming: The touch screen system supports quick program switching, allowing operators to easily adjust for non-standard pallet customizations.
• Premium Component Stability: Built with internationally recognized, high-grade components (such as BOSTITCH/Max nail guns, Delta control systems, and Airtac electronics) to ensure stable, low-maintenance, 24/7 industrial operation.
• Space & Labor Optimization: Features an obverse/reverse stacking method that maximizes storage density on the stacking platform while slashing operational time.

Key Technical Specifications

• Operating System: Imported PLC Touch Screen control for precise and user-friendly operation.
• Working Mode: Fully automatic feeding, multi-axis linkage nailing, and automatic stacking.
• Nailing Speed: High-efficiency nail guns operating at up to 7 times/second.
• Production Efficiency: 1–2 finished pallets per minute.
• Air Pressure Required: 0.8 MPa.
• Applicable Nail Sizes: Supports a versatile range of nails (65mm, 70mm, 75mm, 80mm, 85mm, 90mm).

Package and shipping:

The wood shaving machine is packed by plywood case or loose, which is suitable for FCL and LCL shipping.

After sales services:

1. Warranty: 1 year

2. Lifetime upgrades and consulting services

3. 24-hour servic hot line for consulting and solving the problems

4. Provide product design and solution within 24 hours
